Gravity Conveyors

LogistiQ conveyors are built to order based on our customer’s specifications. This approach allows us to provide equipment that is exactly as needed with short lead times. Leading the conveyor industry in built-to-order equipment, LogistiQ’s wide range of sizes and options allow us to offer as our standard product what our competitors would consider special equipment. Our material handling equipment is divided into the following product classes: Gravity Conveyors, Power Conveyors and Chutes.

Non-powered roller conveyors or Gravity Conveyors are the most economical and common method of conveying unit loads. These conveyors are typically mounted on a slight decline angle, therefore using gravity to assist product movement, especially for long distances. They can also be used in applications where the conveyor is level and operators can push the product along to its final destination, allowing for multiple workstations, if needed.

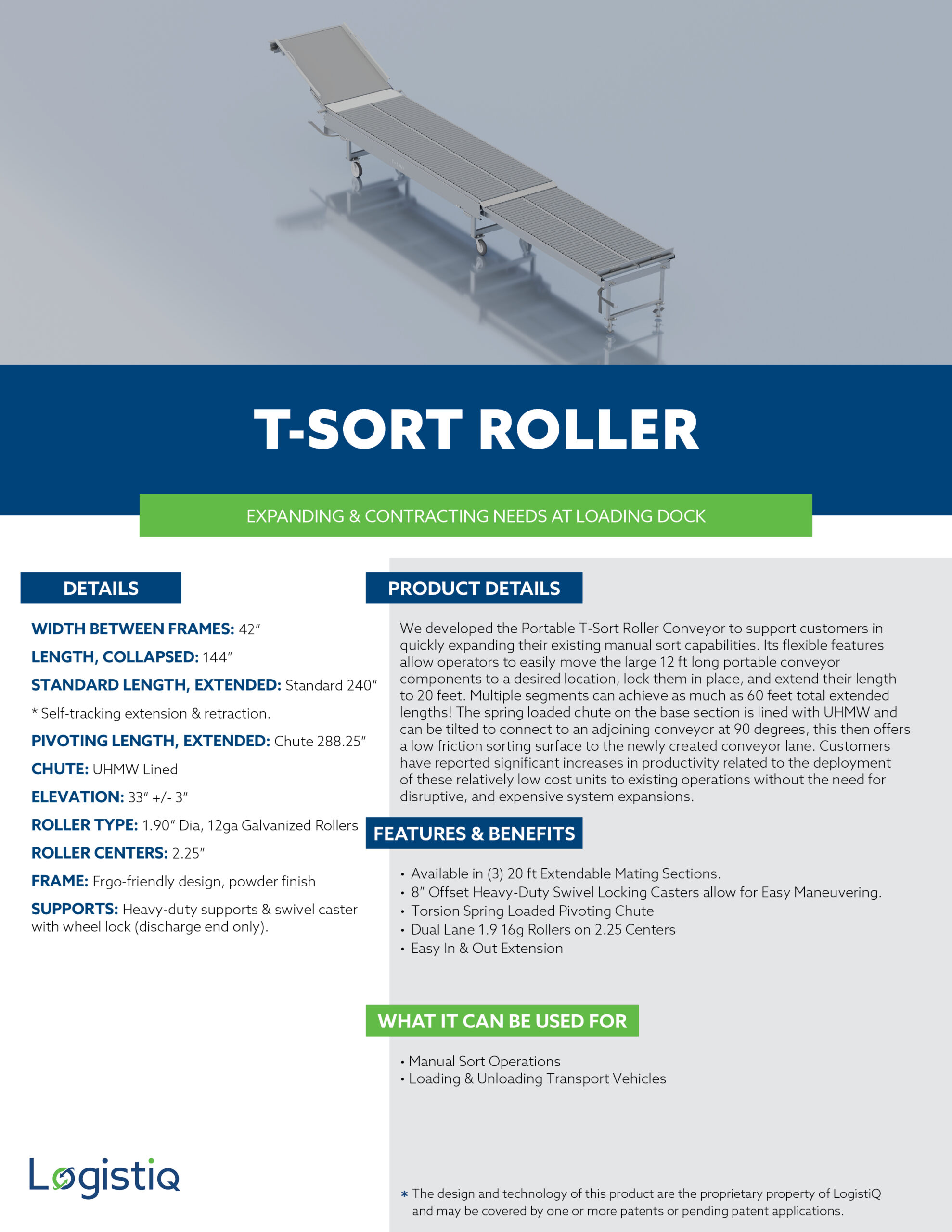

Portable T-Sort Roller Conveyor With & Without Chutes, Up To 60 Ft Long

We developed the Portable T-Sort Roller Conveyor to help customers quickly expand their manual sort capacity. Its flexible design allows operators to easily move the 12-ft components, lock them into position, and extend them to 20 ft, achieving up to 60 ft when multiple segments are connected. The springloaded, UHMW-lined chute can tilt to interface at 90 degrees, creating a lowfriction sorting surface for new conveyor lanes. Customers have seen meaningful productivity gains by deploying these cost-effective units without the disruption or expense of major system expansions.
  • • WIDTH BETWEEN FRAMES: 42”
    • LENGTH, COLLAPSED: 144”
    • STANDARD LENGTH, EXTENDED: Standard 240”
    *Self-tracking extension & retraction
    • PIVOTING LENGTH, EXTENDED: Chute 288.25” • CHUTE: UHMW Lined
    • ELEVATION: 33” +/- 3”
    • ROLLER TYPE: 1.90” Dia, 12ga galvanized rollers
    • ROLLER CENTERS: 2.25”
    • FRAME: Ergo-friendly design, powder finish
    • SUPPORTS: Heavy-duty supports & swivel caster with wheel lock (discharge end only)
• Available in (3) 20 ft Extendable Mating Sections
• 8” Offset Heavy Duty Swivel Locking Casters allow for Easy Maneuvering
• Torsion Spring Loaded Pivoting Chute
• Dual Lane 1.9 16g Rollers on 2.25 Centers
• Easy in & Out Extension
• Manual Sort Operations
• Loading & Unloading Transport Vehicles
DOWNLOAD PRODUCT SHEET

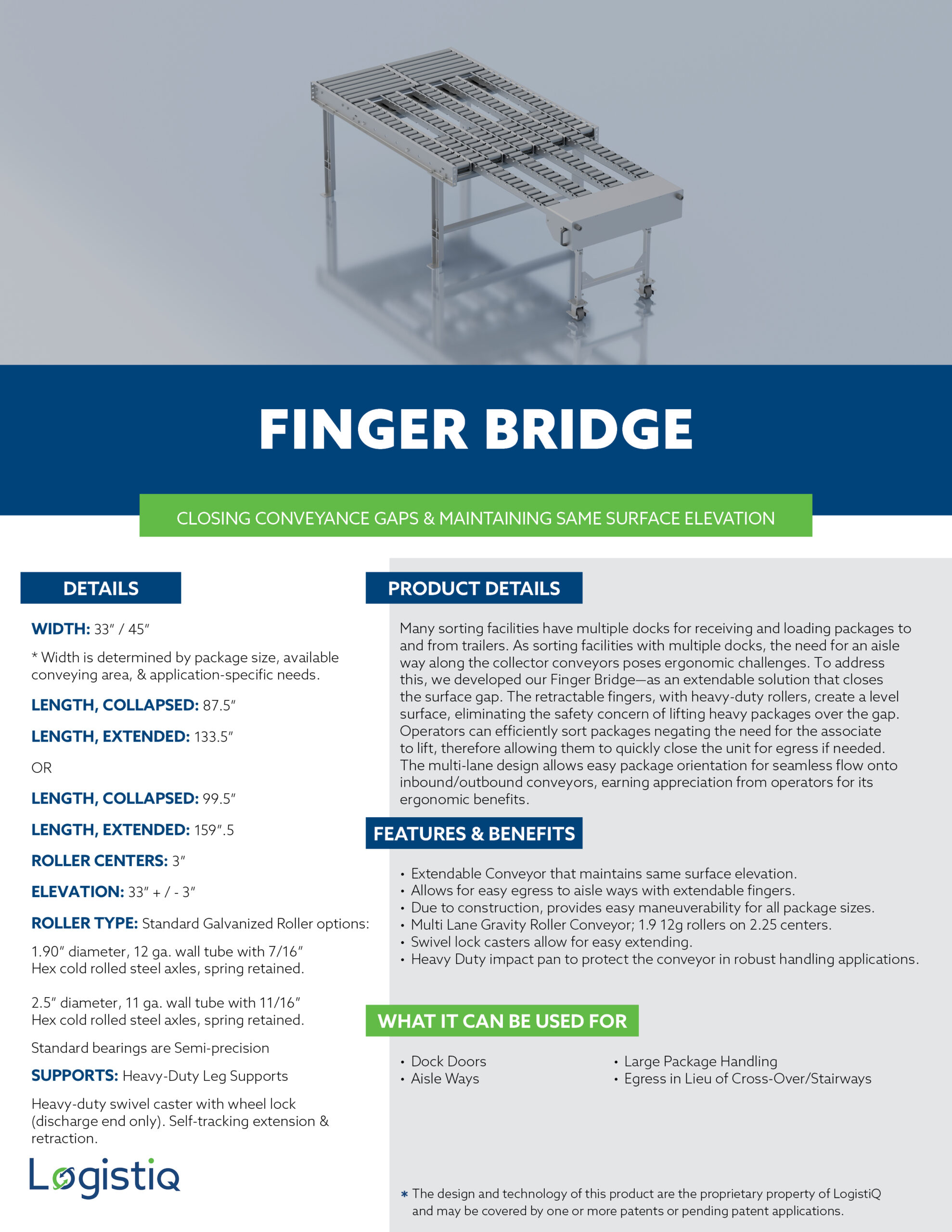

Finger Bridge Multi-Lane Extendable Gravity Conveyor

Many sorting facilities rely on multiple docks, creating aisleway gaps along collector conveyors that pose ergonomic challenges. Our Finger Bridge solves this with extendable, heavy-duty rollers that create a smooth, level surface—eliminating the need for operators to lift heavy packages over the gap. Its retractable design allows quick egress when needed, and the multi-lane layout helps orient packages for seamless flow to inbound or outbound conveyors. Operators appreciate the improved efficiency and ergonomic benefits this solution brings to their daily tasks.
• WIDTH: 33” / 45”
*Width is determined by package size, available conveying area, & application-specific needs
• LENGTH, COLLAPSED: 87.5”
• LENGTH, EXTENDED: 133.5”
• LENGTH, COLLAPSED: 99.5”
• LENGTH, EXTENDED: 159”.5
• ROLLER CENTERS: 3”
• ELEVATION: 33” + / - 3”
• SUPPORTS: Heavy-duty Leg supports
Heavy-duty swivel caster with wheel lock (discharge end only). Self-tracking extension & retraction
• ROLLER TYPE: Standard galvanized roller options:
• 1.90” diameter, 12 ga. wall tube with 7/16”
• Hex cold rolled steel axles, spring retained
• 2.5” diameter, 11 ga. wall tube with 11/16”
• Hex cold rolled steel axles, spring retained
• Standard bearings are Semi-precision
• Extendable Conveyor that maintains same surface elevation
• Allows for easy egress to aisle ways with extendable fingers
• Due to construction, provides easy maneuverability for all package sizes
• Multi Lane Gravity Roller Conveyor; 1.9 12g rollers on 2.25 centers
• Swivel lock casters allow for easy extending
• Heavy Duty impact pan to protect the conveyor in robust handling applications
• Dock Doors
• Aisle Ways
• Large Package Handling
• Egress In Lieu of Cross-Over/Stairways
DOWNLOAD PRODUCT SHEET
